Chocolate Decoration Machine | Zigzag & Drizzle Decorator

A chocolate decoration machine applies controlled streams of chocolate to the surface of products as they travel along a conveyor. In a typical coating line, it sits between the enrober and the cooling tunnel: tempering machine → enrober → decoration machine → cooling tunnel → packaging. It can also be evaluated for lines that need decoration without full chocolate coating.

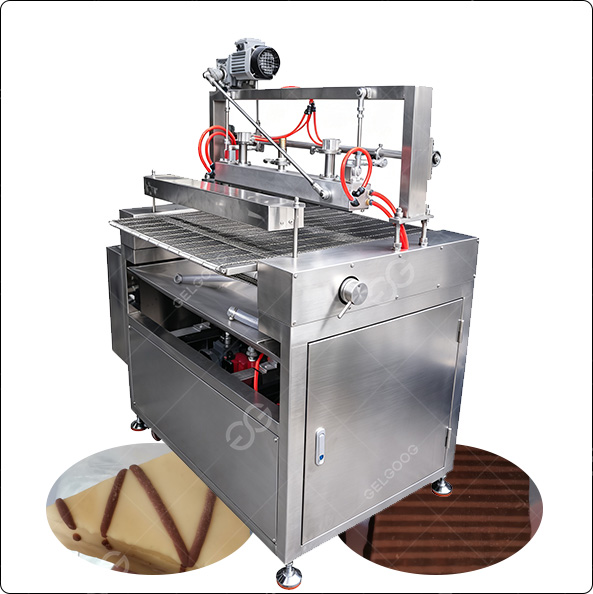

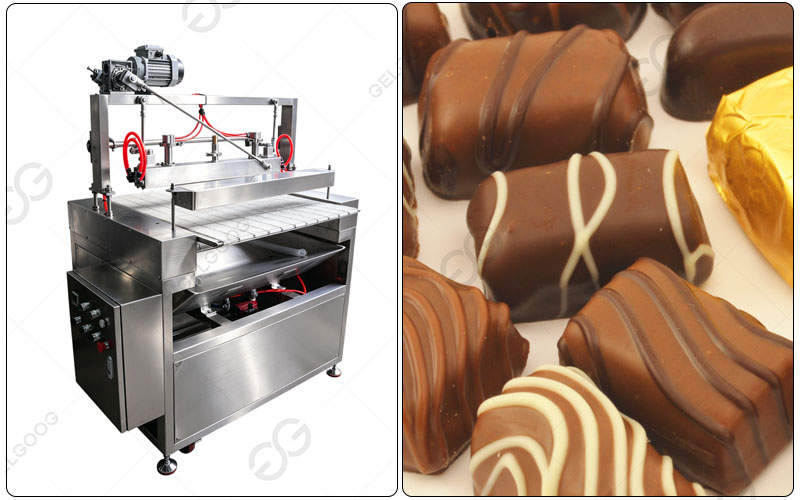

The chocolate decoration machine is designed to create attractive decorative patterns on chocolate-coated products, biscuits, cakes, wafers, snack bars, and other confectionery items. It can produce straight lines, zigzags, waves, crosshatch patterns, and customized designs, enhancing product appearance and adding value to your brand.

Decoration Patterns Can Produce

An automatic chocolate decorator can produce straight lines, zigzags, waves, crosshatch patterns, and patterns developed for a specific product. The result depends on the nozzle arrangement, chocolate flow, conveyor speed, and movement of the decorating head. For a requested pattern, share a product photo or sample design so the nozzle layout can be assessed before quotation.

Two-color and three-color decoration can be evaluated when each chocolate type has a suitable supply and dispensing arrangement. Separate colors may require separate feed circuits and controls; the available configuration should be confirmed for the proposed machine.

Chocolate viscosity affects how a pattern looks on the product. Chocolate that flows too readily may spread and lose line definition, while chocolate that is too thick may form uneven or interrupted lines. Tempering condition, temperature, nozzle size, and flow rate should therefore be tested together with the actual chocolate recipe and product.


Equipped with a PLC control system and precision chocolate dispensing technology, the machine ensures consistent decoration quality while allowing easy adjustment of decoration speed, chocolate flow, and pattern spacing. The integrated temperature-controlled chocolate system maintains optimal chocolate viscosity for smooth and continuous operation.

Manufactured from food-grade stainless steel, the machine is hygienic, durable, and easy to clean. It can operate independently or be integrated into a complete chocolate production line for fully automated production.

How It Integrates with Your Production Line

The decoration machine is normally positioned after the enrober, where it applies patterns before the chocolate enters the cooling tunnel. For a reliable transfer, the decorating section must match the upstream and downstream conveyors in working width, belt height, product direction, and line speed. The usable decorating width must cover the product arrangement on the belt; conveyor width alone does not establish the required pattern coverage.

Installation also needs enough space for the decorating head, chocolate supply, pipework, cleaning, operator access, and product transfer into the cooling tunnel. The exact footprint depends on whether the decorating unit mounts over an existing conveyor or needs its own conveyor section. A line layout and equipment dimensions are needed to check this.

FAQ about Chocolate Decoration Machine

Q: Can the working width be customized?

A: Yes. Provide the conveyor belt width and the maximum width occupied by products. We will assess the required decorating width and suitable machine configuration.

Q: Will it fit my existing production line?

A: It may be possible. We need the enrober and cooling tunnel dimensions, belt height and width, line speed, available installation space, and product layout to check the connection points.

Q: Does it support two-color decoration?

A: Two-color decoration can be evaluated as part of the machine configuration. Tell us which chocolates you plan to use and whether they must be applied at the same time. Three-color requirements should also be specified at the enquiry stage.

Q: How are after-sales service and spare parts handled?

A: The quotation should identify the warranty terms, service contact, recommended spare parts, and replacement-part supply arrangements. If you have site-specific maintenance requirements, include them in your enquiry.

Q: What information is needed for a quotation?

A: Please send the product type and dimensions, target pattern or reference image, required number of colors, chocolate type, conveyor width and speed, desired working width, and power supply. For an existing line, also include its layout, available space, and the models or dimensions of the enrober and cooling tunnel. With these details, we can prepare a quotation within 48 hours.
